Introduction:

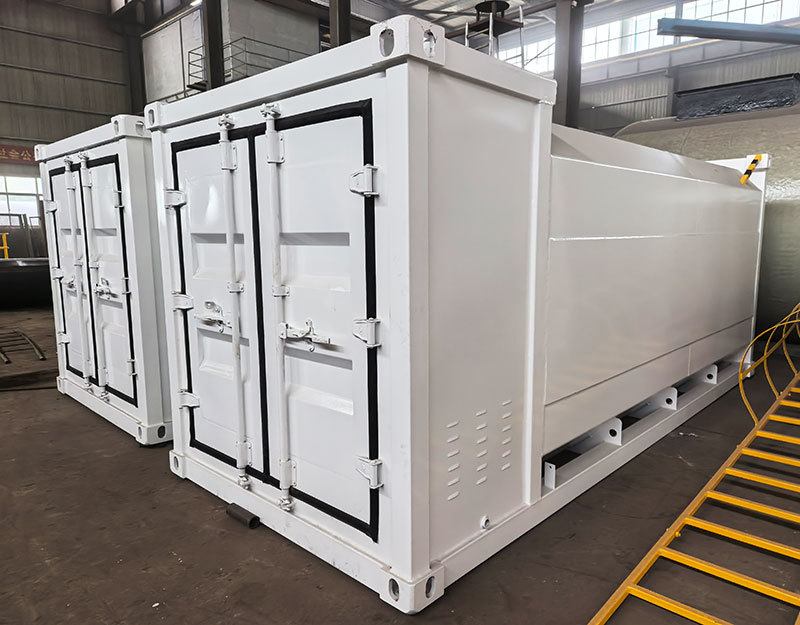

The Portable Gas Filling Station uses special aluminum alloy foil explosion-proof materials, and all equipment adopts explosion-proof products. It is an integrated gasoline and diesel filling device of the barrier explosion-proof type.

Purpose:

The Portable Gas Filling Station is used as a mobile refueling station at airports, mainly for general aviation airports, gasoline refueling for small aircraft within the airport, aviation kerosene refueling for aircraft, and maintenance refueling for ground service vehicles.

Parameters:

portable gas filling station

Equipment Name

portable gas filling station

Equipment Model

JSL-Y-Ⅳ-50-1S/C-1

Fuel Dispenser

Self-sealing filling

Filling Method

Pressure filling

Connector Size

3-inch quick coupling

Equipment Dimensions

Custom designed

Weight

 Approx. 20T

Material

Q235B

Tank Body

 Inner tank: 8mm

 Outer tank: 6mm

Footprint

Approx. 40m²

Capacity

Diesel ≈ 40T

Emergency Pressure Relief Device

Opening pressure 4300Pa

Explosion-proof Device

AQ3001-2021

Function

Aircraft refueling, oil storage, filtration

Operating Voltage

380V/220V

Operating Power

Maximum power not exceeding 12KW when all machines operate simultaneously

The Portable Gas Filling Station adopts explosion-proof measures designed and supervised in accordance with pressure vessel standards. It is filled with explosion suppression materials made of special magnesium-aluminum alloy series materials and manufactured using special processing techniques. It is equipped with a level gauge with high-level alarm function, automatic fire extinguisher, emergency pressure relief device, overflow prevention device, automatic fire extinguisher, and compartmentalized management.

Company Strength:


Advantages:

The Portable Gas Filling Station features an oil and gas detector that triggers an alarm and automatically stops oil supply and cuts off the fuel dispenser power. When the oil and gas concentration exceeds the alarm value set on the detector, the alarm emits an audible and visual signal, automatically stops the pump from supplying oil to the storage tank, and cuts off the fuel dispenser power to prevent external refueling. The mobile skid-mounted refueling station's electrostatic grounding controller triggers an alarm and automatically stops oil supply. When the electrostatic grounding controller is not grounded or the grounding resistance exceeds the specified value, the alarm emits an audible and visual signal and automatically stops the pump from supplying oil to the storage tank.

The interlayer of the mobile skid-mounted refueling station's tank body is equipped with an automatic leak detection device, enabling automatic alarm.
