Vacuum Pressure Impregnation Equipment

1. Product Introduction

This equipment adopts advanced vacuum pressure impregnation technology, designed to thoroughly eliminate micro-voids within the insulation system through fluid penetration under deep vacuum environment. It serves as a critical process in the manufacturing of motors, transformer windings, and high-voltage insulation components, significantly enhancing insulation performance and the overall electrical service life of the equipment.

2. Product Description

The system consists of a high-vacuum pressure treatment tank, medium storage and processing system, automated control cabinet, and gas-liquid piping assembly. Driven by precise program control, the system achieves fully automated operation of "vacuum degassing — pressure impregnation — curing" within the pressure vessel, ensuring that the impregnation medium (such as insulating varnish or epoxy resin) fills deeply into all gaps of the workpiece without dead corners.

3. Features & Advantages

• Thorough Impregnation: Vacuum-pressure gradient cycles completely remove internal trapped air.
• High Stability: Combined pneumatic and servo drive ensures smooth pressure build-up curve, eliminating sudden impact.
• Highly Integrated: Integrated medium temperature control, filtration, and recycling system for energy saving and emission reduction.
• Safe & Reliable: Multiple interlock logic and redundant protection devices ensure operator and equipment safety.

4. Technical Specifications Overview

5. Design & Material Appearance

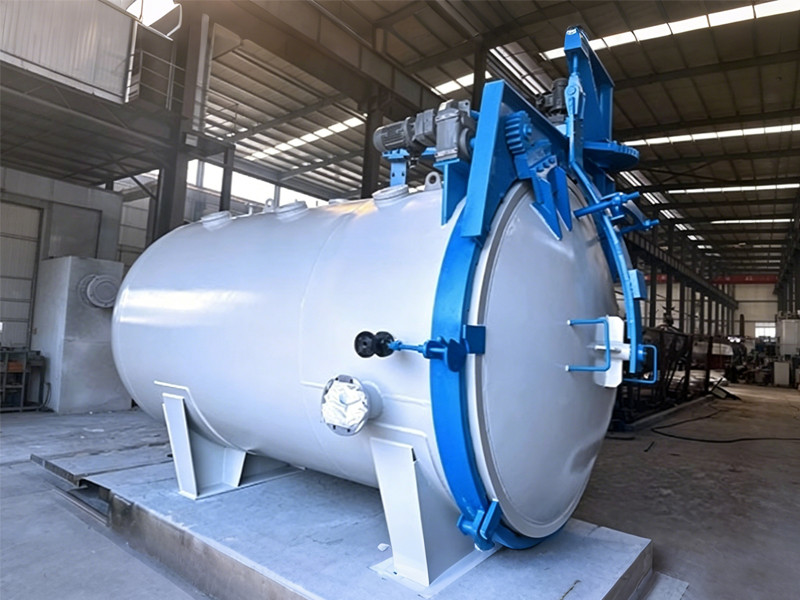

The tank body is manufactured from high-grade corrosion-resistant pressure steel plate, with the inner wall precision-ground and treated with a wear-resistant coating. The exterior adopts a modular protective casing, following the design philosophy of "function first, easy maintenance." The industrial blue and metallic silver color scheme highlights the clean-processing nature of the equipment.
